Eversolo - DAC-Z10 - DAC

DAC-Z10 Reference DAC & Preamplifier

Pure Digital-to-Analog Conversion with Absolute Signal Integrity

The DAC-Z10 is engineered to transform digital audio into an uncompromising analogue experience. Designed for listeners who demand transparency, precision, and musical authenticity, it reveals the finest detail and natural character of every recording.

Fully Isolated Architecture for Pure Sound

Eversolo FIA™

At the heart of the DAC-Z10 is Eversolo’s Fully Isolated Architecture (FIA™). This advanced design completely separates digital and analogue circuits, eliminating interference and preserving signal purity from source to output.

Three independent linear power supplies power the left channel, right channel, and system control separately, creating an ultra-low-noise operating environment. This meticulous isolation allows each section to perform at its absolute best.

Dual-Mono DAC Design with AKM Velvet Sound™

The DAC-Z10 features dual independent decoding modules, each built around AK4191 + AK4499 DAC chips for left and right channels. This true dual-mono architecture delivers exceptional channel separation, superior dynamic range, and remarkably low distortion.

Powered by AKM Velvet Sound™ technology, the DAC-Z10 balances technical precision with tonal richness, producing a sound that is both accurate and musically engaging.

Native audio support includes:

• DSD512 Native

• PCM up to 768kHz / 32-bit

Precision R2R Volume Control

Lossless at Any Listening Level

Unlike digital attenuation, the DAC-Z10 uses a fully balanced R2R resistor ladder volume control. This preserves the original signal across all volume levels, ensuring absolute accuracy from quiet listening to reference-level playback.

Every nuance remains intact, delivering clean dynamics, precise imaging, and faithful sound reproduction.

Fully Balanced Analogue Preamplifier

The DAC-Z10 integrates a high-performance balanced analogue preamplifier, supporting both XLR and RCA inputs with up to +10 dB gain. Combined with the precision R2R volume network, it achieves ultra-low noise and distortion while significantly enhancing dynamic range and signal integrity.

High-Precision Clock System

Eversolo Precision Core™

Accurate timing is fundamental to high-resolution audio. The DAC-Z10 employs an OCXO temperature-controlled crystal oscillator paired with PLL (Phase-Locked Loop) technology for exceptionally stable clock reconstruction.

An internal FPGA processor reshapes IIS data and refines clock signals, ensuring every digital stream reaches the DAC in its purest possible form.

External master clock support:

• 10 MHz

• 25 MHz

• 50 Ω / 75 Ω input impedance

Ultra-Low Noise Power Architecture

Three independent toroidal transformers supply isolated power to each channel and the system controller. This design achieves noise levels as low as 42 μV, allowing the DAC-Z10 to deliver extraordinary detail, stability, and soundstage precision.

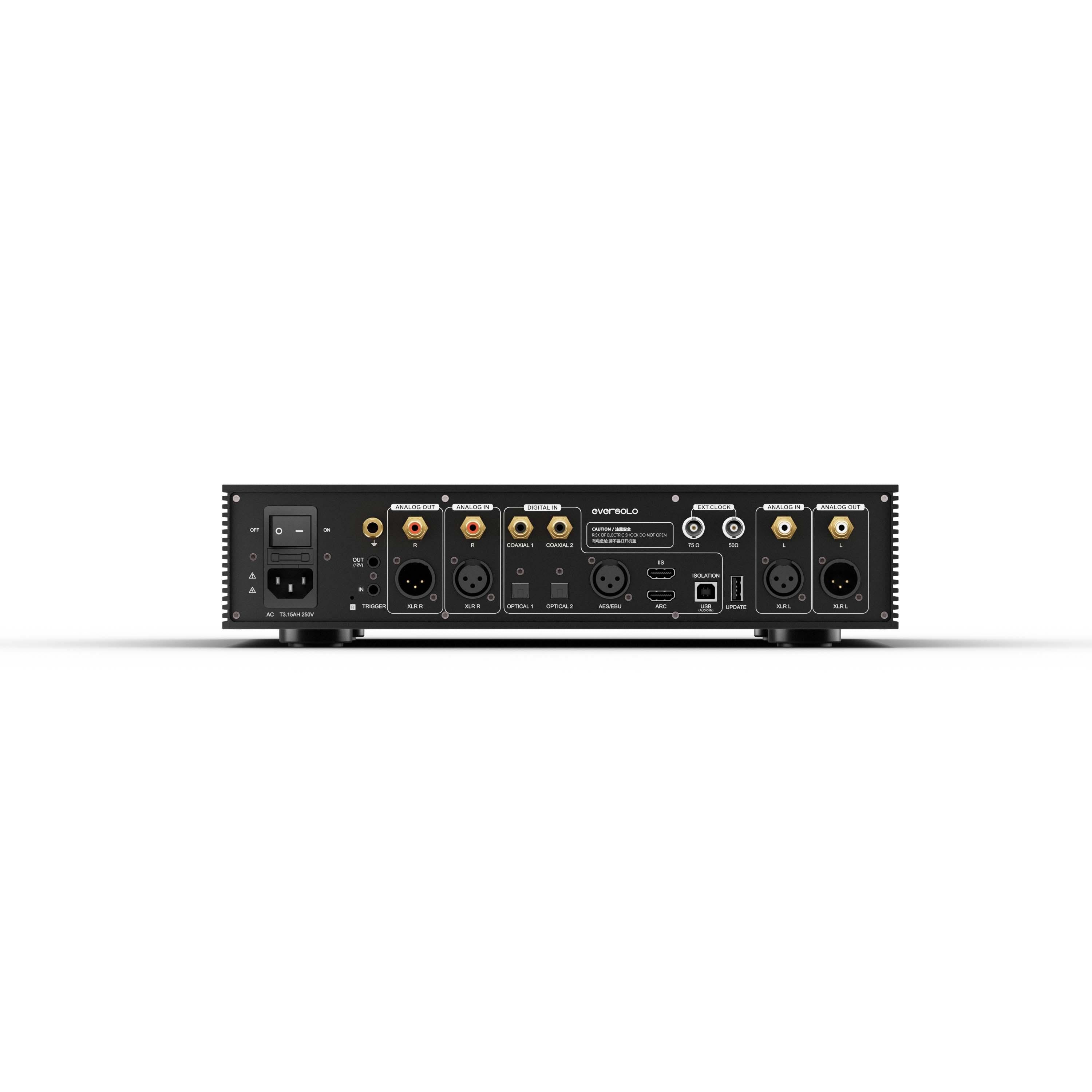

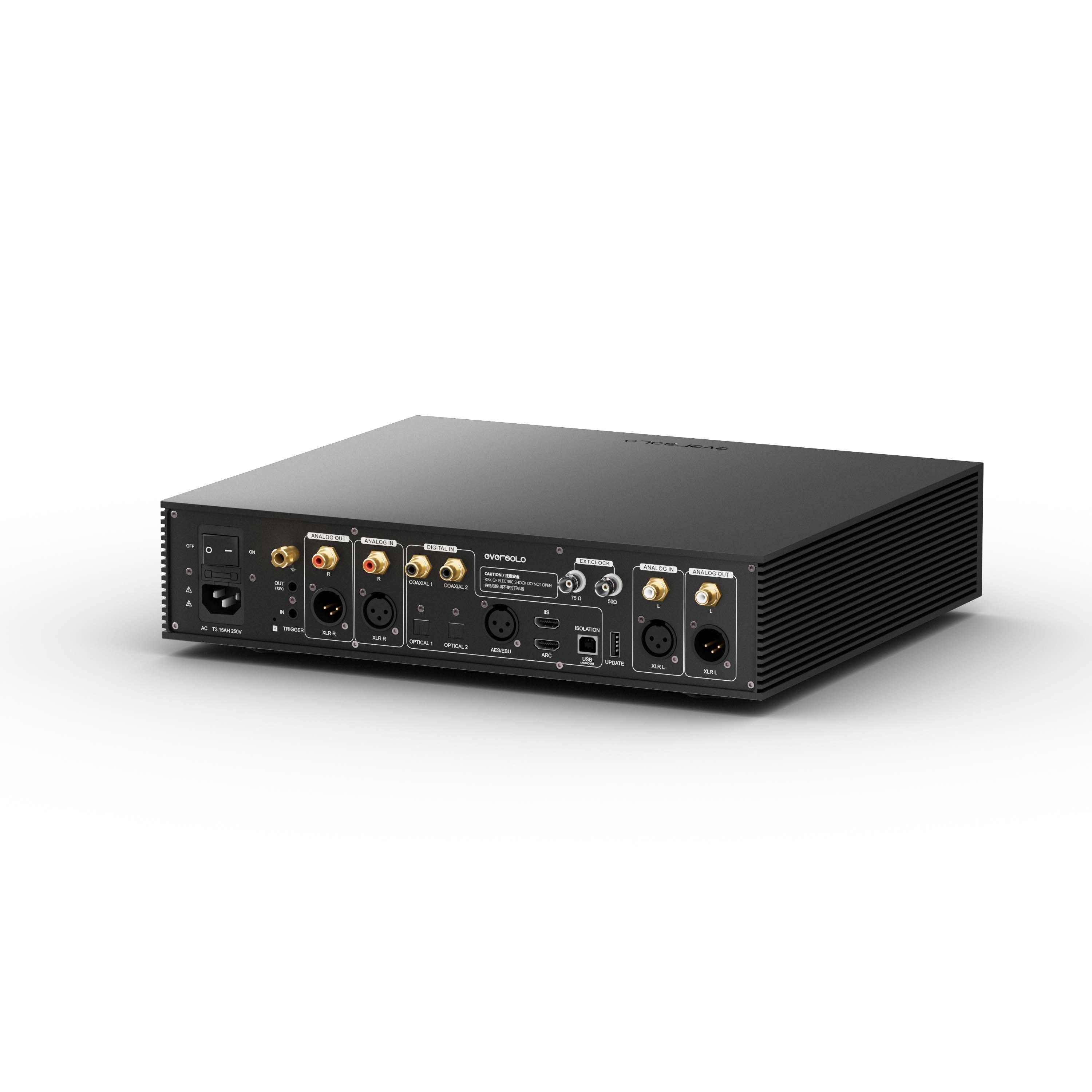

Advanced Digital & Analogue Connectivity

The DAC-Z10 offers extensive connectivity for both audiophile and home-theatre systems:

Digital Inputs

• USB Audio (DSD512 Native, PCM 768kHz / 32-bit)

• HDMI ARC / eARC

• IIS Digital Audio (8 switchable modes)

• Dual Coaxial (192kHz / 24-bit)

• Dual Optical

• Isolated AES/EBU

• High-quality Bluetooth (Qualcomm QCC5125)

Analogue Outputs

• Balanced XLR

• Single-ended RCA

Each digital input is electrically isolated to prevent ground loops and external noise contamination.

8-Mode IIS Input for Ultimate Flexibility

The IIS interface offers eight selectable modes, supporting up to PCM 768kHz / 32-bit and DSD512 Native. Complete signal and ground isolation ensures pristine data transmission between devices.

Dedicated Headphone Amplifier

The DAC-Z10 includes a 6.35 mm headphone amplifier module with automatic impedance detection and adjustable gain settings (low, medium, high).

Maximum output power:

• 1 W @ 16 Ω

• 1 W @ 32 Ω

• 0.16 W @ 300 Ω

This ensures powerful, controlled performance across a wide range of headphones.

Audiophile-Grade Chassis & Shielding

The enclosure is crafted from aviation-grade aluminium, combining structural rigidity with refined aesthetics. Integrated electromagnetic shielding protects sensitive circuits from interference, ensuring stable and consistent performance.

Intuitive Touchscreen Control & Visual Displays

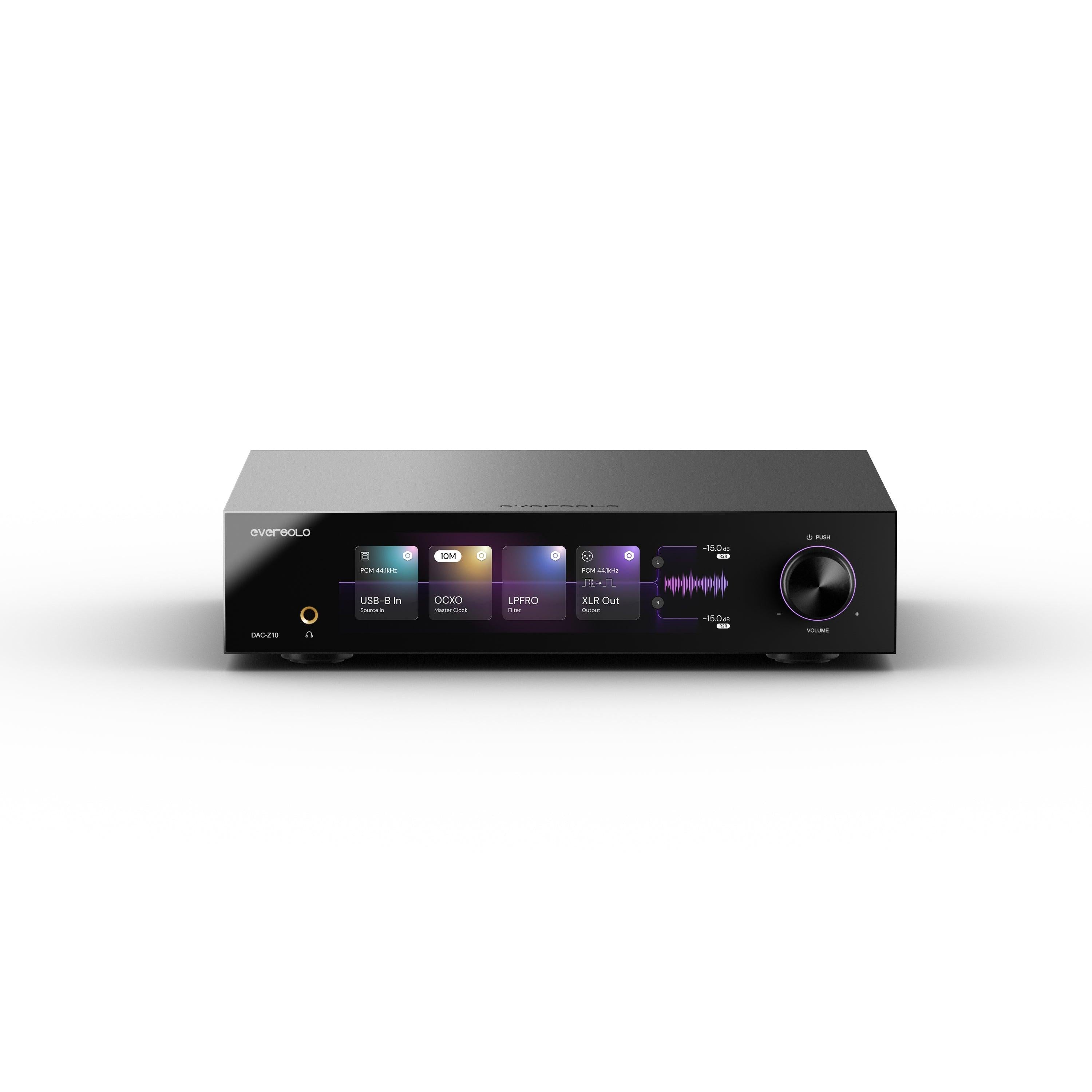

An 8.8-inch IPS touchscreen provides effortless control over inputs, volume, filters, and playback status. A dedicated routing interface visually displays the complete signal path, including clock source, filter selection, and balanced output status.

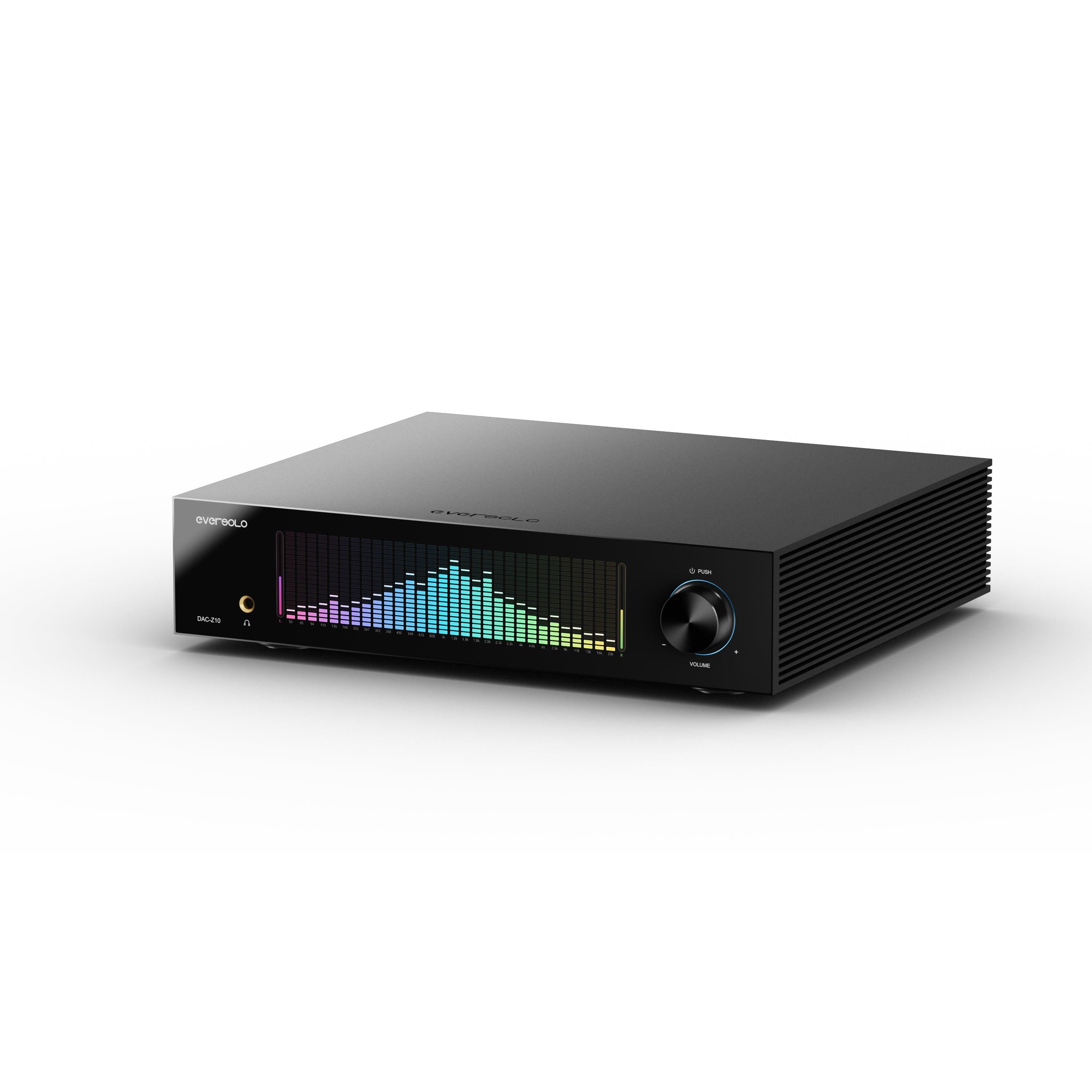

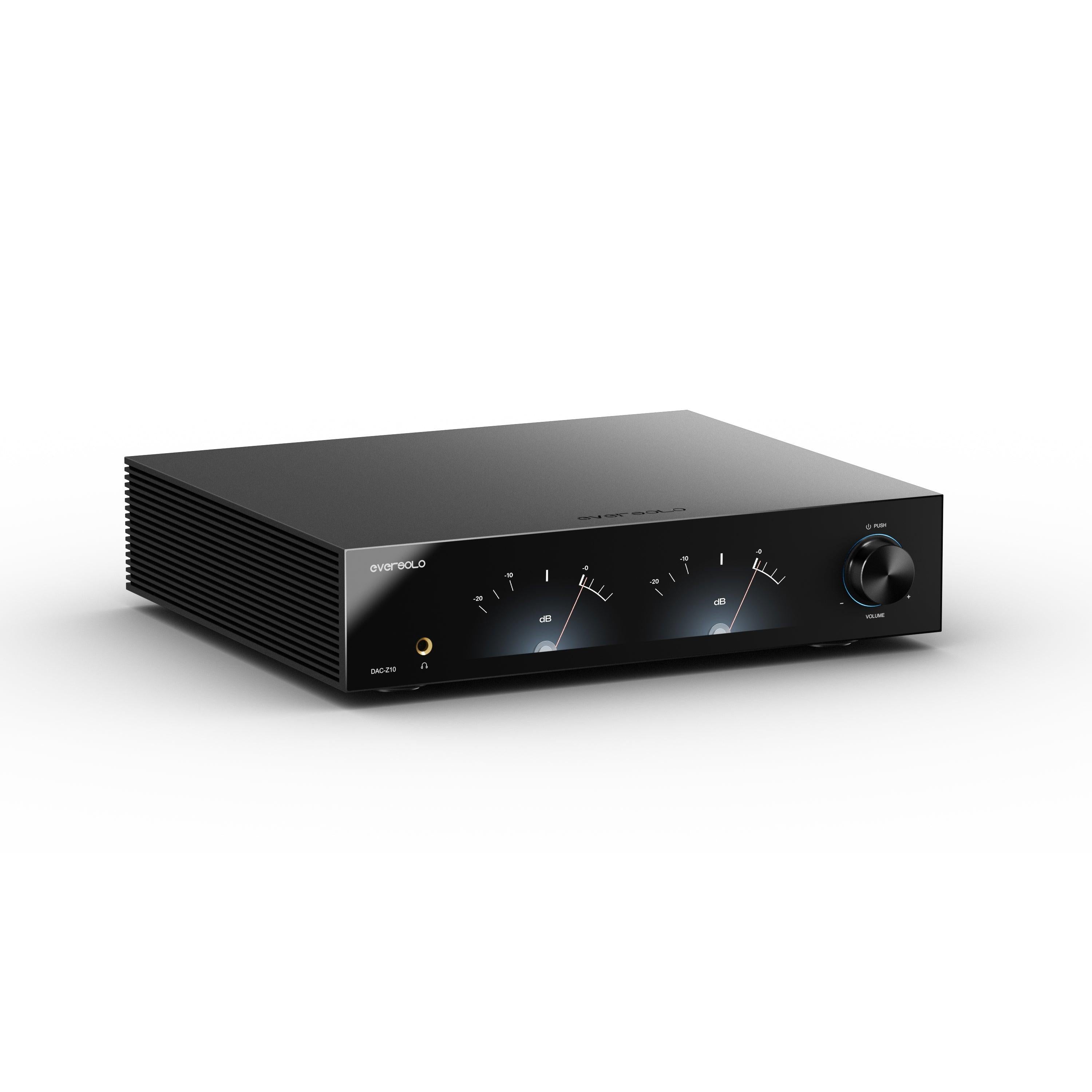

For added enjoyment, the DAC-Z10 includes vintage VU meters and dynamic spectrum displays, blending sonic excellence with visual elegance.

Advanced Sound Customisation

• 6 DAC filter characteristics to tailor sound signature

• ±15 dB left/right balance adjustment

• XLR polarity switching for system compatibility

These tools allow precise tuning to match personal preference and system requirements.

Designed for Pure Musical Enjoyment

The DAC-Z10 is more than a digital-to-analogue converter. It is a reference-grade DAC, preamplifier, and headphone amplifier engineered to deliver uncompromising sound quality, absolute precision, and refined control—bringing you closer to the true essence of music.
