Ruark - RS1 - Subwoofer

• Designed to produce bass that is controlled and most importantly, musical
• Fits perfectly into the home with its tailored grille and wood panels
• Powerful 100W RMS Class D amplifier with soft clipping filter
• Straightforward set-up and adjustment

driver at all volume levels with headroom to spare, although soft clipping and protection is built in should the system ever be overloaded to avoid damage. Setup and adjustment is straightforward and with its auto-on/ standby feature, RS1 will automatically turn itself on
and off as required.

Enhancing your experience

RS1 delivers bass that smaller speakers can’t, giving a more satisfying and realistic audio experience. It’s a perfect addition to Ruark’s MR1 and R3S models on any other system where a subwoofer with style and good sound is required, providing the joy of bass in every note and song.

Born from the desire to enhance the already impeccable sound of Ruark’s award-winning MR1 Bluetooth speakers, the all-new RS1 subwoofer can transform the audio performance of any home speaker with driving rhythm and rich harmony. Beautifully controlled and fundamentally musical, RS1 is the bedrock of larger than life sound that you can both hear and feel.

Developed through demand

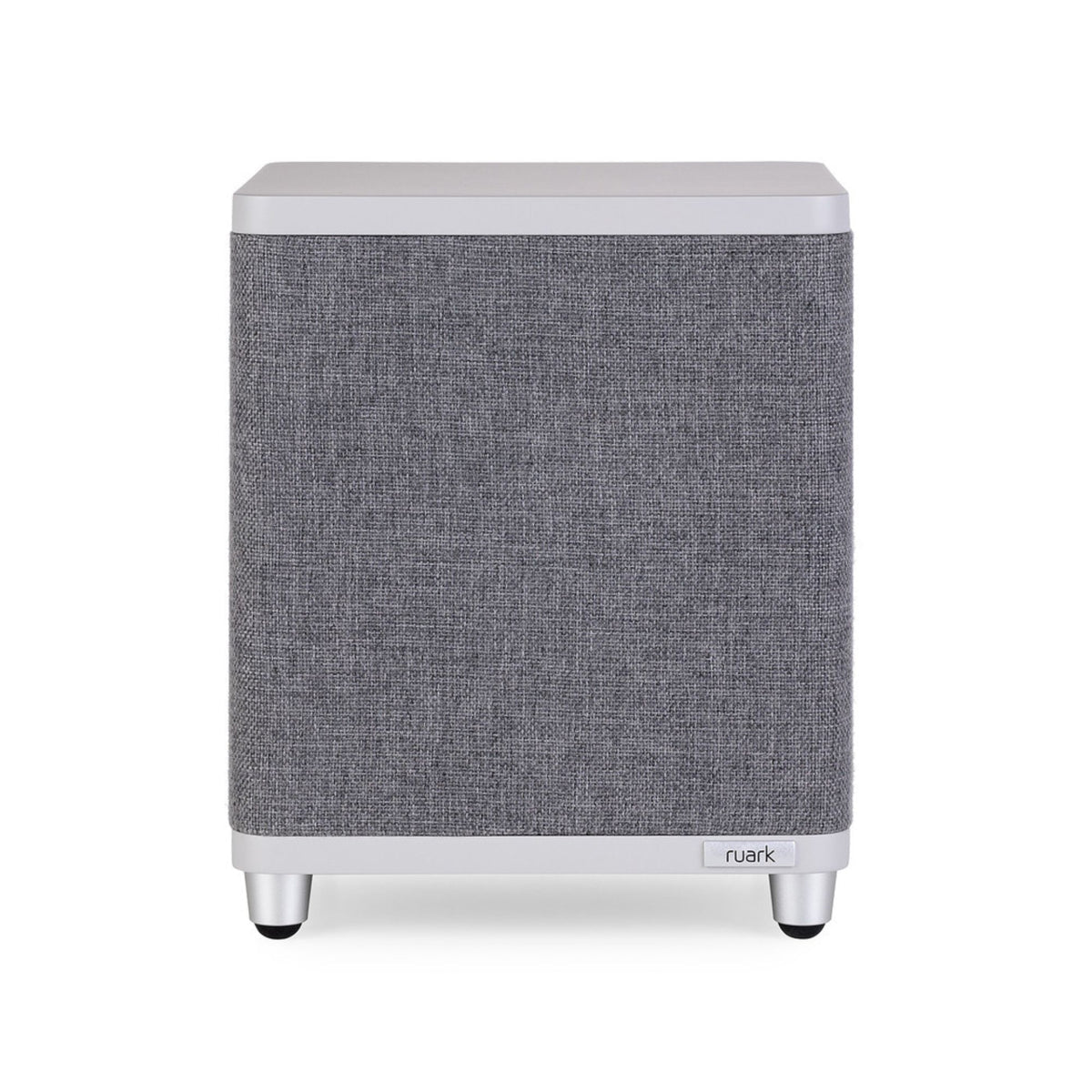

As with the rest of Ruark’s R-Series, the elegant design and technical specifications of RS1 are unparalleled. Where many subwoofers are unattractive black boxes, the tailored grille and hand-crafted panels of RS1 have been crafted to enable it to sit comfortably within the home.

Controlled delivery

The enjoyment of music is at the core of any Ruark design, and RS1 is not about thunderous, overblown bass, but about deep, controlled, and most importantly, musical, sound. To achieve this, the enclosure and custom drivers have been optimised and tuned to provide natural extended bass, that is fast and rhythmic. Driving the system is a powerful 100 watt Class D amplifier. This new generation amplifier keeps firm control of the bass.

Specifications

Frequency response: 25Hz – 200Hz
Cabinet: Tuned passive radiator enclosure

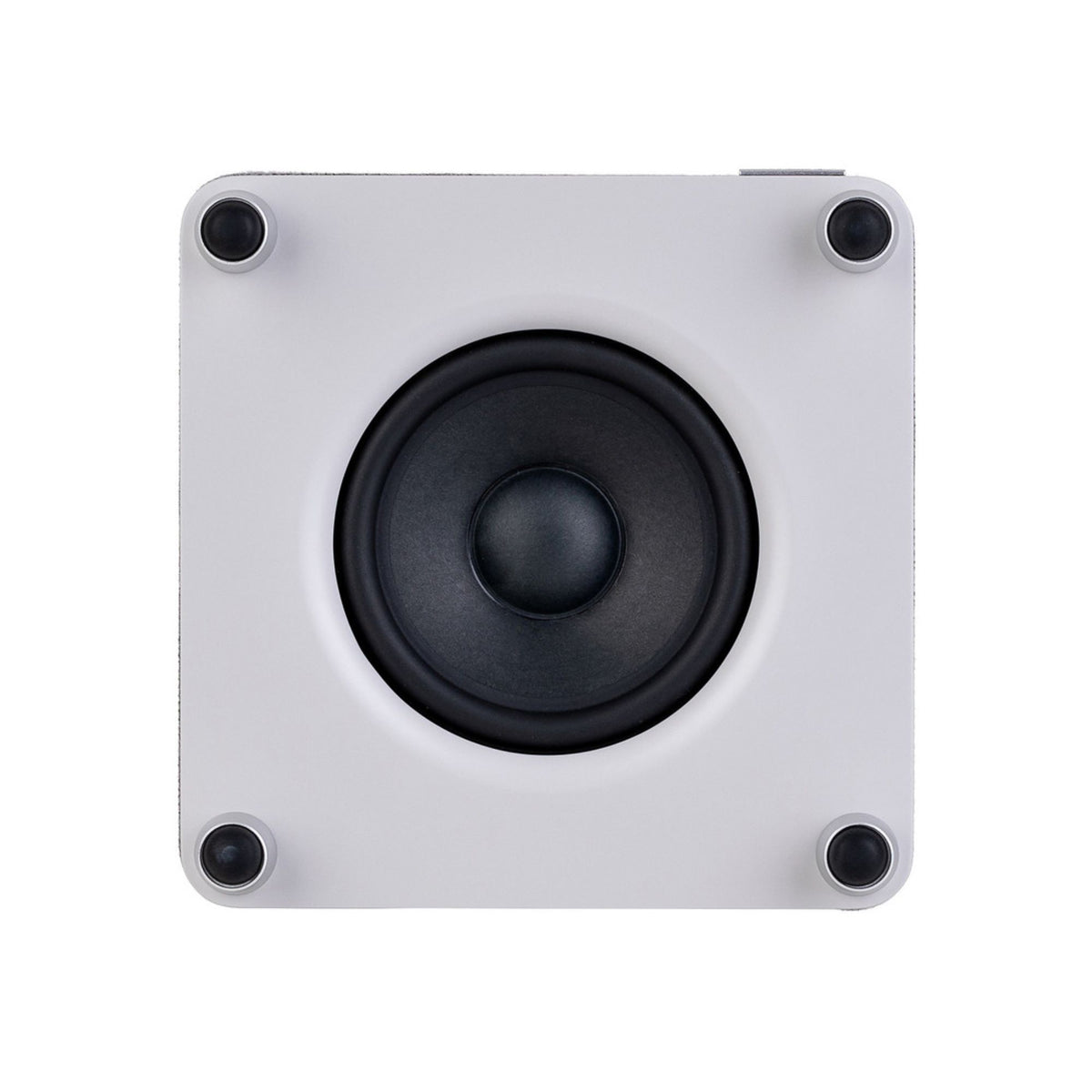

Drivers: 170mm treated fibre long-throw active driver & 170mm passive radiator
Amplifier: 100W RMS Class D with soft clipping filter

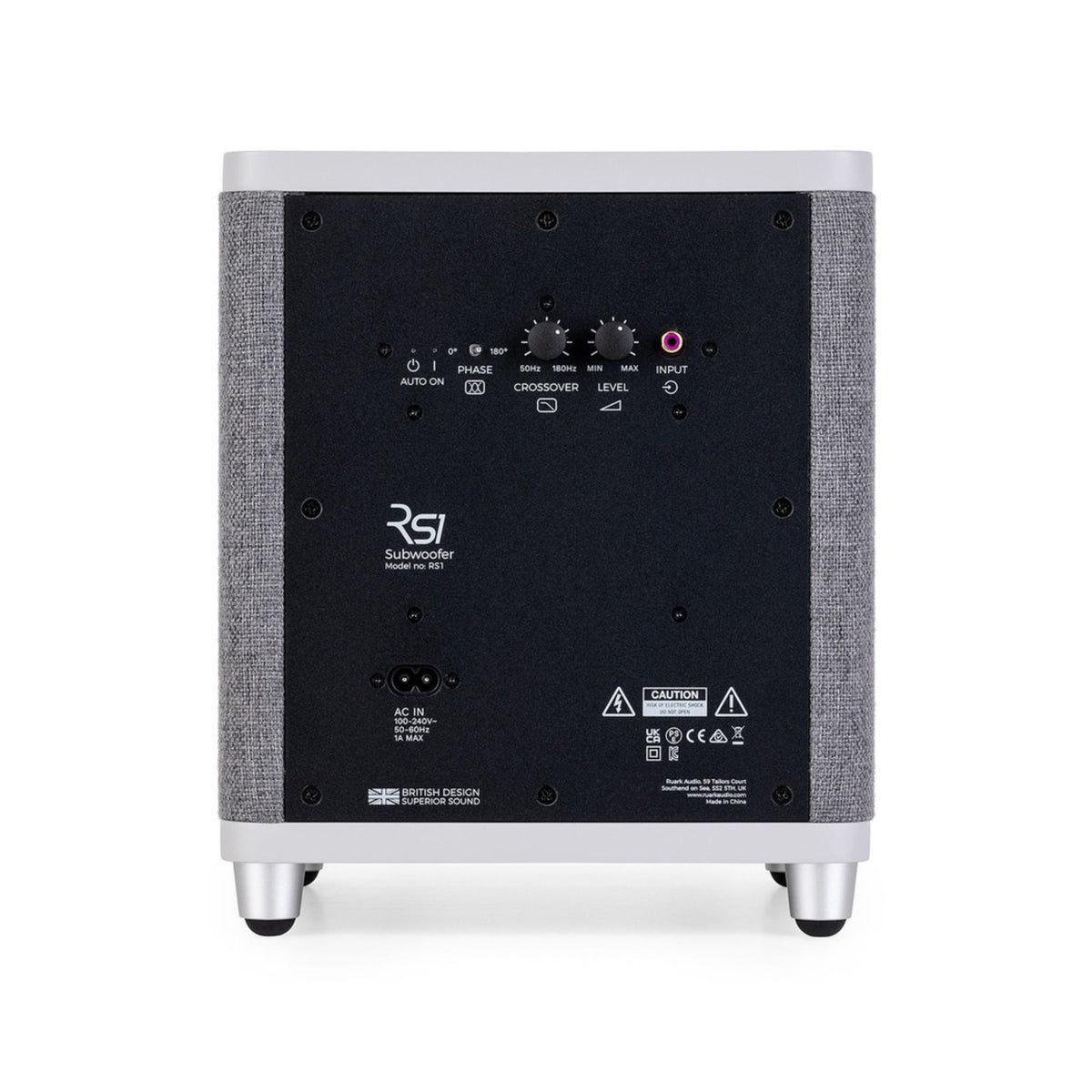

Controls: Adjustable crossover 50–180Hz, input/volume level control and 180 degree phase switch
Input: Sub-input via Mono RCA input (up to 2.3Vrms)
Finish: Lead Grey cabinet cloth with Rich Walnut top and bottom panels
Box contains: RS1 subwoofer, mains lead, 1.5m RCA connector lead and quick start guide
Power consumption: 0.5W standby, 2.0W idle
Product dimensions: H300 x W250 x D265mm (inc. feet and controls)
Product weight: 6.7kg
