SKU CONNECT 702

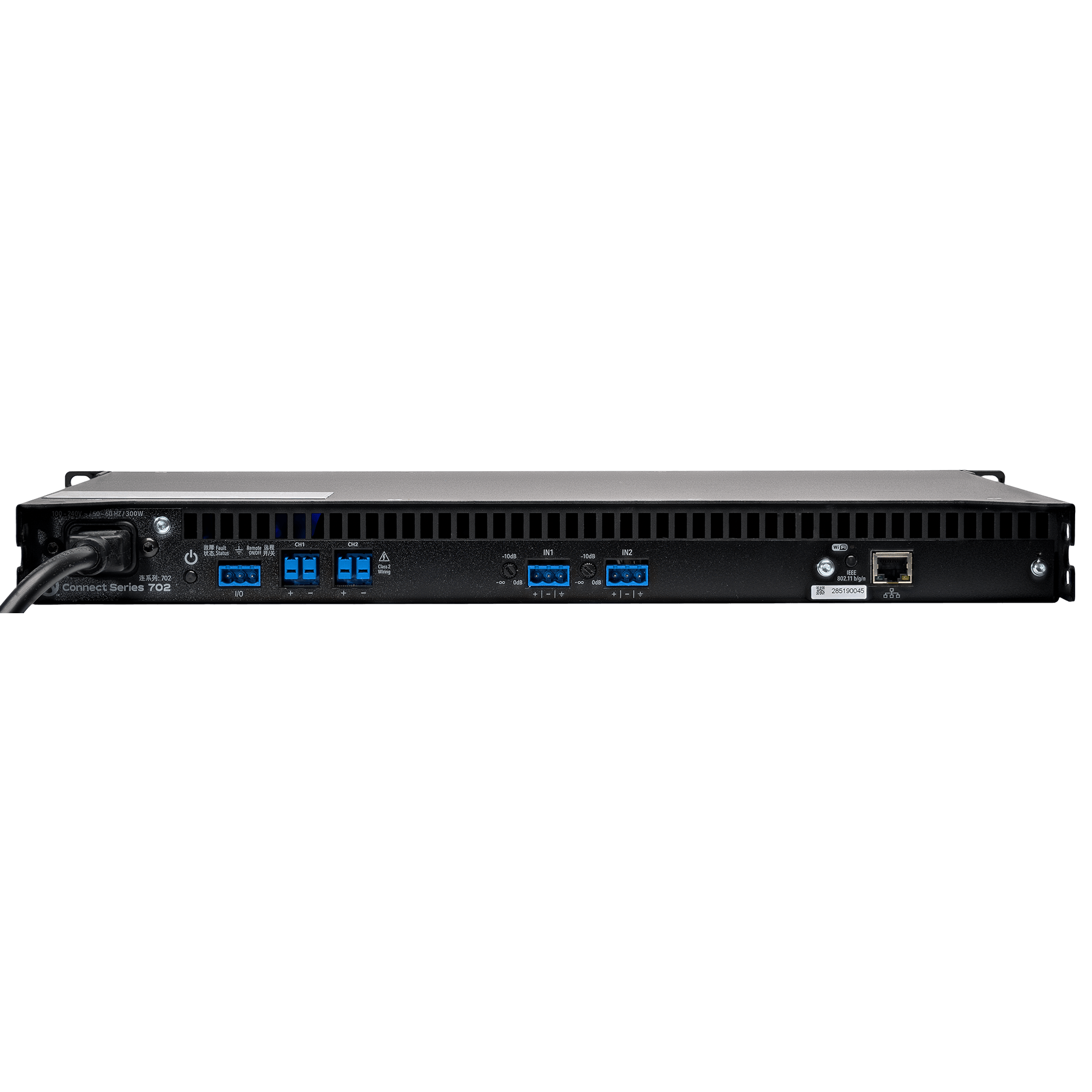

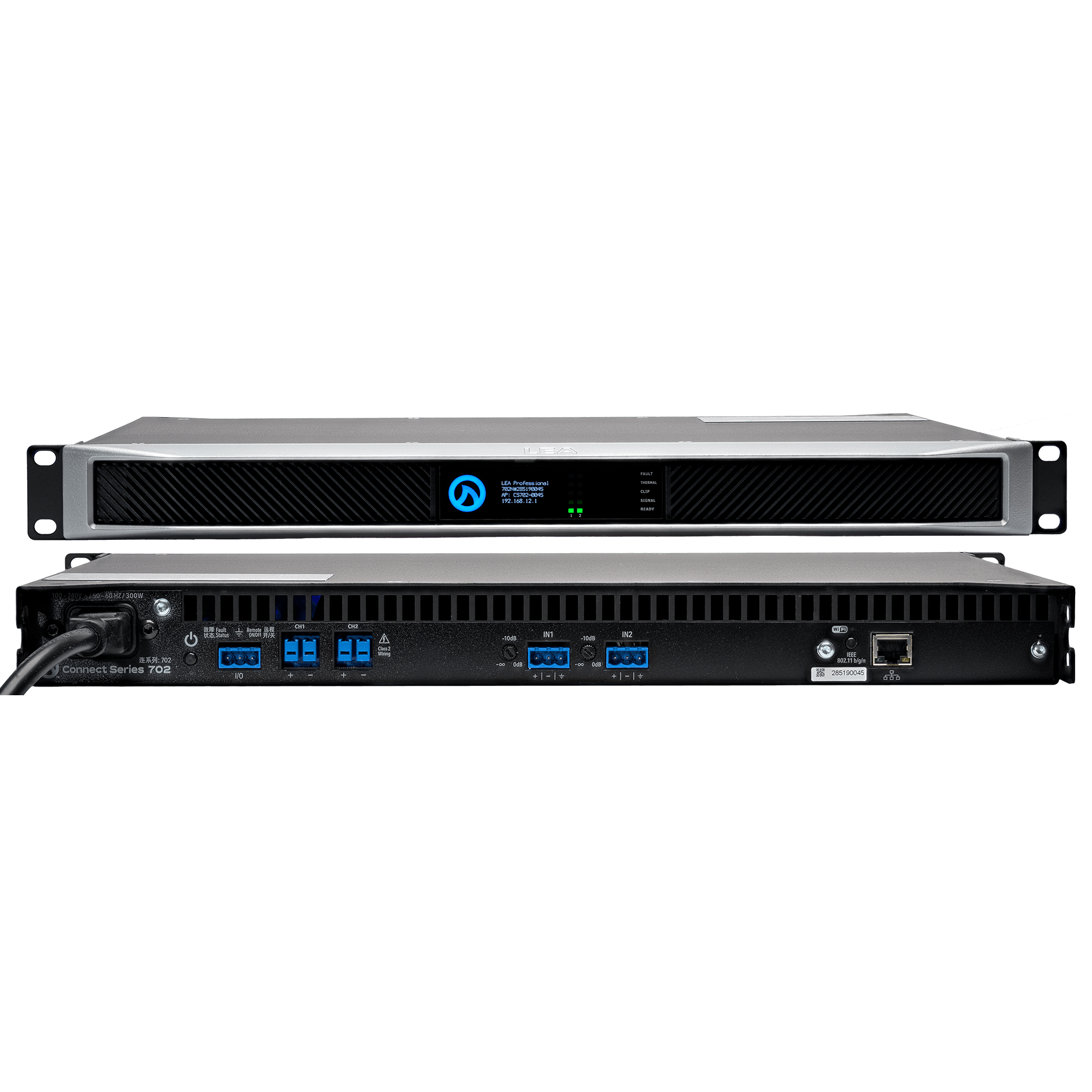

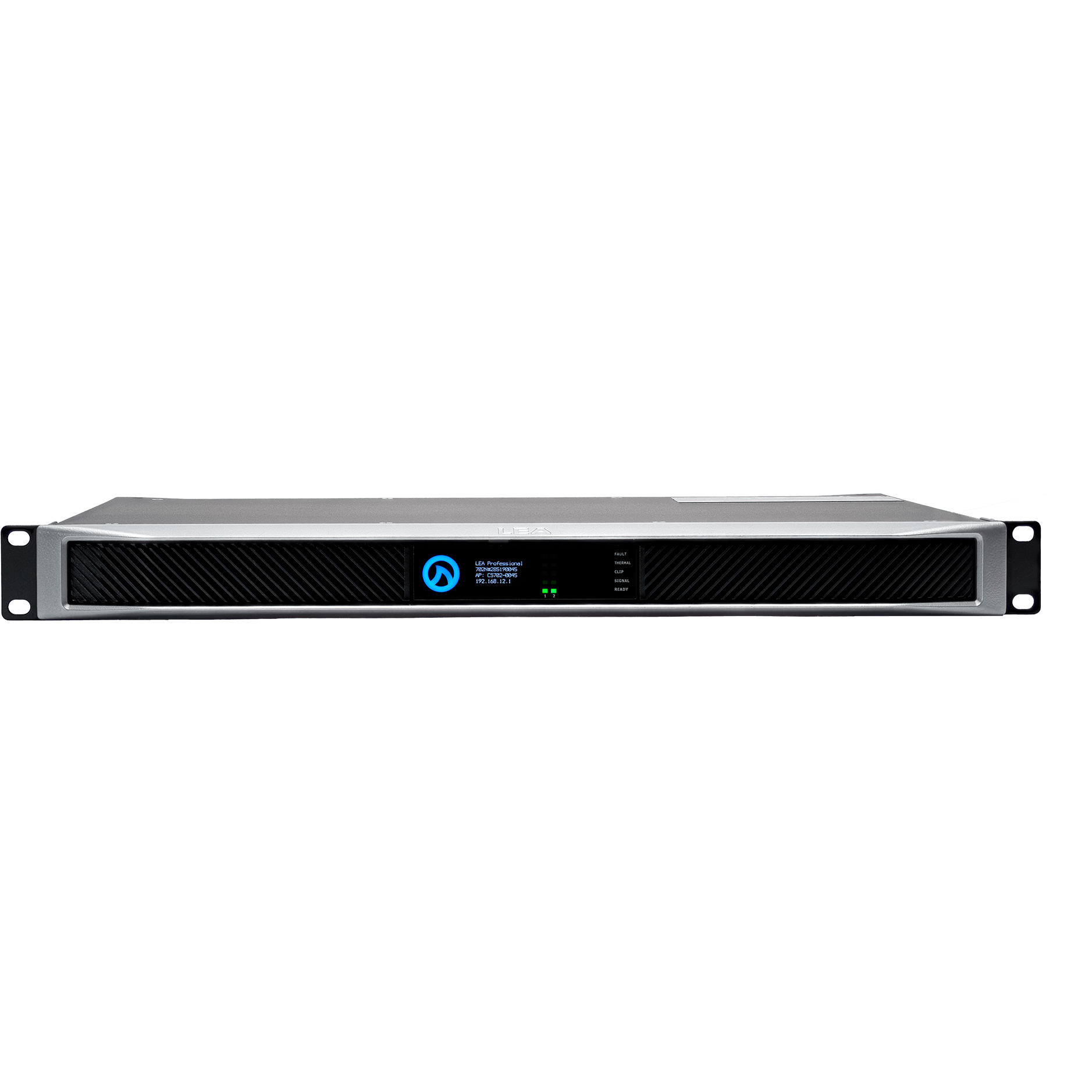

LEA - CONNECT 702 - Amplifier
by Krix
$4,195.00
Lightning Fast Free Delivery*
Don't wait to start your audio adventure. With our lightning-fast delivery, your new high-fidelity audio equipment will be at your doorstep before you know it.
Check Out Our Thousands Of Reviews
Our services hit the high notes, but don't just take our word for it. Scroll down to read the rave reviews from our chorus of happy customers. They've heard the difference, and you can too.
The CONNECTSERIES 702 is a 2-channel amplifier with 700 watts per channel. As part of the Network CONNECTSERIES, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, it is perfectly suited for small to medium-scale installations. The 702 features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.
Then there’s the Cloud…Network CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems.
| Category | Specification |
|---|---|
| AUDIO SPECIFICATIONS | |
| Inputs | 2 Balanced Analog Inputs with user-selectable 26 dB and 34 dB input sensitivity |
| THD+N | 0.1% (20Hz to 20kHz) |
| Frequency Response | 20Hz to 20kHz, ±0.5 dB @ 4Ω, 8Ω, 70V, 100V; -2.5dB @ 20kHz at 2Ω |
| Signal to Noise Level | 105dB (20Hz to 20kHz referenced to 8Ω) |
| Crosstalk | 70dB (20Hz to 20kHz) |
| Amplifier Output Classification | Class D with Proprietary Smart Power Bridge Technology (bridged output without losing amplifier channel) |
| DSP | |
| DSP Architecture | Analog Devices Sigma 96kHz DSP Processor with 32-bit Core and Sample Rate Converters |
| Input Matrix | Routable matrix – any input to any output with primary and secondary input priority |
| Crossovers | Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) |
| Parametric EQ | 8 Band Parametric EQ per channel |
| Output Delay | 100ms per channel |
| Output Protection | DC, VHF, AC Mains Protection, Overtemp, Current Limiter, and fan fault detection |
| User Adjustable Limiting | Peak Voltage and RMS Voltage |
| Load Monitoring | Real-time Load Monitoring and Pilot Tone Detection (Internal/External sources) |
| CONTROL, MONITORING, NETWORKING | |
| User Interface | Web Browser UI, 3rd Party API Control, or Cloud Control |
| External I/O | In: Toggles Remote On/Off Out: Indicates Amplifier Health |
| OPERATION | |
| AC Mains | 100VAC – 240VAC ±15%, 50Hz or 60Hz |
| Power Supply | Universal Switch Mode Power Supply with Power Factor Correction |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L × W × H) | Product: 14.25” x 19” x 1U (362mm x 482mm x 1U) Shipping: 20” x 22.75” x 3.75” (508mm x 578mm x 95.25mm) |
| Weight | Product: 10 lbs / 3.4 kg Shipping: 17.4 lbs / 7.9 kg |
| Cooling | Front to Rear Variable Fan Speed Cooling Noise Levels: 50dB (idle), 57dB (50%), 63dB (full speed) @ 1m |
